The open welding gun is equipped with an automatic speed measurement feedback system, a haval fixture, easy and quick installation, and a hand control box. It can achieve full-position tube-to-tube/tube-to-sheet precision welding, with high welding result reproducibility and ideal effect.
Optional welding head: K-76/K-114/K-168/K-219/K-273/K-325
The welding gun is water-cooled and has a high duty cycle. It can work stably and reliably for a long time without heating.
The arc length and sway function are used to automatically adjust the welding arc length to meet the welding requirements of pipes of different sizes and ensure welding quality.
The KEPUNI open welding head integrates an automatic speed feedback
system, a quick-change Haval-style clamping fixture, and an ergonomic
hand control box to deliver full-position precision welding for
tube-to-tube and tube-to-sheet joints. Its modular design ensures high
repeatability and consistent weld quality across diverse industrial
applications. Key Features: Interchangeable Welding Heads High-Performance Cooling & Reliability Adaptive Arc Control Rapid Setup & User Control Applications: Oil & Gas: Welds pipeline joints, valves, and pressure vessels. Power Generation: Repairs boiler tubes, heat exchangers, and steam generators. Shipbuilding: Joins hull piping and offshore structural components.

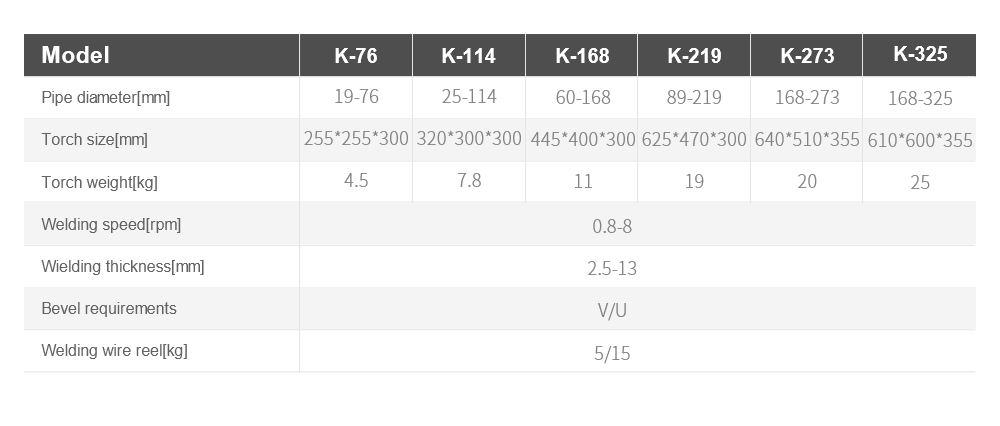

Supports six models
(K-76/K-114/K-168/K-219/K-273/K-325) to accommodate pipe diameters from
19 mm to 325 mm, enabling flexible adaptation to project-specific
requirements.
Water-cooled
torch with a 100% duty cycle ensures stable operation during prolonged
welding cycles, eliminating thermal downtime.
Real-time arc length adjustment and
oscillation function automatically compensate for pipe diameter
variations, maintaining optimal penetration and bead geometry.
The Haval-style fixture
enables tool-free installation in under 2 minutes, while the hand
control box provides intuitive parameter adjustment for operators of all
skill levels.
